Name: 6.5 mm–20 Lever-Cap Screw (Stainless, Big-Grip Head) | Woodyah
Brand: Woodyah
Price: 6.99 USD
Availability: InStock

6.5 mm–20 Lever-Cap Screw — Stainless • Big-Head Grip

We brought back the hard-to-find 6.5 mm–20 thread lever-cap screw in stainless steel — with a large, easy-grip head for confident tensioning. Proper fit on our new lever caps and on many antiques that were built for this thread.

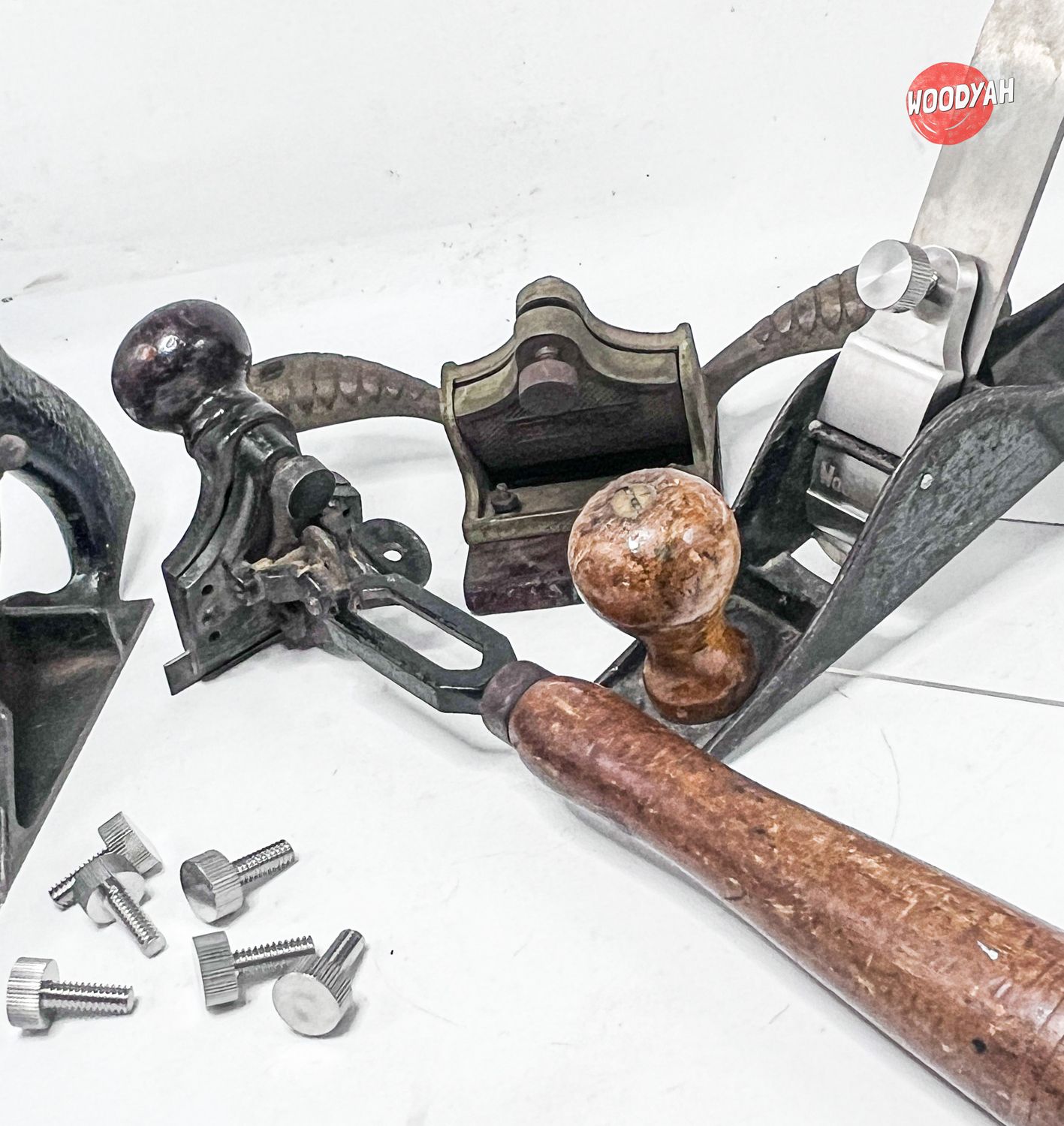

6.5 mm–20 stainless lever-cap screw with large grip head

Photo: 6.5 mm–20 stainless screw • big-slot head • knurled/coin-able edge (if applicable)

Why woodworkers like this screw

Proper Thread: Made to the 6.5 mm–20 spec used on many vintage lever caps.
Stainless Steel: Resists rust in real-shop conditions; threads stay crisp.
Large Head, Big Slot: Positive grip and torque without chewing the slot.
New + Antique Compatible: Works with Woodyah lever caps and many original caps that were built for this thread.
Shop-Tested: Locks down cleanly for a consistent, chatter-free scrape or cut.

Compatibility & Fit

Use case: Lever-cap clamping/tension on scrapers and planes designed for 6.5 mm–20.

Works with: Woodyah new lever caps; many antiques that originally shipped with 6.5 mm–20 hardware.

Stanley 82 owners: This size is commonly used; verify your original thread before ordering.

Quick Fit Check

Measure shank Ø: Use calipers on your original screw (or the cap’s threaded boss). You’re looking for ~6.5 mm OD.
Thread pitch: 20 TPI equivalent for this diameter. If a 1/4-20 feels loose or binds early, your tool likely needs 6.5 mm–20.
Test by hand: The screw should start smoothly, seat flush, and clamp without wobble.

Tip: If your current screw chews the slot, won’t hold tension, or feels “gritty,” replace it — threads or plating may be worn.

Specifications

Thread

6.5 mm–20 (vintage pattern)

Material

Stainless steel

Head

Large-diameter, deep slot for positive grip

Finish

As-machined / polished stainless

Length Options

18 mm

Fits

Woodyah lever caps; many antique caps built for 6.5 mm–20

Guest checkout available via PayPal — quick, safe, and no account required.

Install & Use Notes

Start threading by hand; if you feel resistance in the first 1–2 turns, re-verify thread spec.

Seat the lever cap, then tighten until the tool cuts cleanly without chatter.

If your cap or boss has damage, chase the threads or replace the boss for best results.

FAQ

Will this fit my antique?
If your original hardware is 6.5 mm–20, yes. Measure with calipers or test with a known 6.5 mm nut. If a 1/4-20 feels sloppy or binds, your tool likely needs 6.5 mm–20.

Is the head truly easier to grip?
Yes — we spec a larger head and deeper slot for positive torque and less slot damage over time.

Will it resist rust?
It’s stainless steel, chosen for shop environments where moisture and fingerprints are common.

“Proper threads, perfect head — exactly what these tools needed.” — feedback we hear again and again from working woodworkers.

Woodyah — made by woodworkers, for woodworkers. Keep your tools working.
